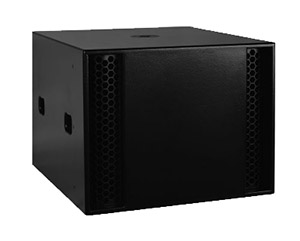

LS-18
Light and easy to handle,the LS18 uses a single 18" long excursion driver
With a steel stand fitting on top of the cabinet, the LS18 also allows for
pole mounting with PS15 R2 full range speakers.LS18 can be flown in tandem
with PS15s, which willbe of particular interest to the installation sector.
Key Features
1.High power system (137-140dB peak SPL @ 1m)
2.Frequency response 30Hz-130Hz (a)
3.1 x 18" 4" voice coil long excursion 8 Ω driver
4. Light and easy to handle
5.Integrates with PS Systems
System Applications
1.Small to mid sized tour systems
2.Stadium/Arena/Auditorium installations
3.Nightclub and music venue installations
4.Houses of worship
5.Corporate AV and presentation systems
With a steel stand fitting on top of the cabinet, the LS18 also allows for
pole mounting with PS15 R2 full range speakers.LS18 can be flown in tandem
with PS15s, which willbe of particular interest to the installation sector.
Key Features
1.High power system (137-140dB peak SPL @ 1m)
2.Frequency response 30Hz-130Hz (a)
3.1 x 18" 4" voice coil long excursion 8 Ω driver
4. Light and easy to handle
5.Integrates with PS Systems
System Applications
1.Small to mid sized tour systems
2.Stadium/Arena/Auditorium installations
3.Nightclub and music venue installations
4.Houses of worship
5.Corporate AV and presentation systems
- 产品规格
- 产品配件
- 产品配置
Technical Specification - View
| System Type： | 18″, Sub-woofer |
| Frequency Range： | 35Hz - 120Hz ±3db. |
| LF Driver： | 1x18" 100mmVC Fe. |
| HF Driver： | / |
| Power： | 600W (AES) |
| Nominal Impedance: | 8 ohms |
| Maximum SPL： | 132db Continuous. |
| Sensitivity： | 99db/m/W. |
| Horizontal： | / |
| Vertical： | / |
| Connection： | 2xNeutrik NL4. |
| Input： | Input: 1+,1-, Link:2+,2-. |
| Enclosure Construction： | Trapezoid, 18 mm, plywood. |
| painting： | Rugged durable finish. |
| Dimensions： | 510(W)x775(D)x675(H)mm. |
| Weight： | 55Kg. |
