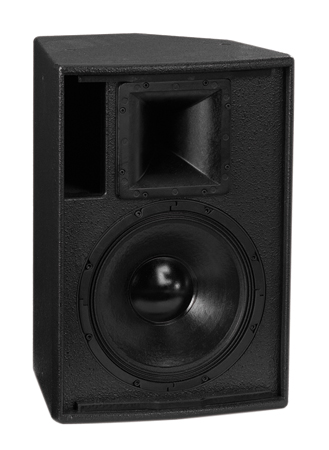

F15+
The high power Blackline F15+ is a high performance,wide bandwidth system
in a compact and efficient package. Extended frequency response is provided
by a new 15" 380 mm LF driver and a new 1.4" 35 mm exit compression driver
mounted on a rotatable 80x50 constant directivity HF horn.
The new LF driver features a tough,water resistant cone and a lightweight
neodymium motor system with inside/outside coil windings for improved heat
transfer.An aluminium demodulating ring reduces distortion and improves
midrange clarity at high levels and increased excursion is available via
a triple roll surround and deep motor structure.
The new HF driver utilises a titanium diaphragm with controlled break up
modes for improved sonic performance at high frequencies and the crossover
design and LF cone profile have been optimised to match the directivity of the
HF horn and LF section through the crossover region.
Features
1. Wide-bandwidth system
2. User rotatable 80° x 50° horn
3. Top hat fitting for speaker stand mounting
4. 1.4” (35mm) exit compression driver
Applications
1. Live club performance
2. High powered stage monitoring
3. Club installs
in a compact and efficient package. Extended frequency response is provided
by a new 15" 380 mm LF driver and a new 1.4" 35 mm exit compression driver
mounted on a rotatable 80x50 constant directivity HF horn.
The new LF driver features a tough,water resistant cone and a lightweight
neodymium motor system with inside/outside coil windings for improved heat
transfer.An aluminium demodulating ring reduces distortion and improves
midrange clarity at high levels and increased excursion is available via
a triple roll surround and deep motor structure.
The new HF driver utilises a titanium diaphragm with controlled break up
modes for improved sonic performance at high frequencies and the crossover
design and LF cone profile have been optimised to match the directivity of the
HF horn and LF section through the crossover region.
Features
1. Wide-bandwidth system
2. User rotatable 80° x 50° horn
3. Top hat fitting for speaker stand mounting
4. 1.4” (35mm) exit compression driver
Applications
1. Live club performance
2. High powered stage monitoring
3. Club installs
- Specifications
- Accessories
- Configurations
Technical Specification - View
System Type: | Compact, two-way passive |
Frequency Range: | 55Hz - 18KHz ±3db. |
LF Driver: | 15"(380mm)/3" (75mm) voice coil,neodymium magnet LF driver |
HF Driver: | 3"vc (35mm) exit HF compression driver |
Power: | 450W (AES) |
Nominal Impedance: | 8 ohms |
Maximum SPL: | 126dB continuous, 132dB peak |
Sensitivity: | 100db/m/W. |
Horizontal: | 80° |
Vertical: | 50° |
Connection: | 2xNeutrik NL4. |
Input: | Input: 1+,1-, Link:2+,2-. |
Enclosure Construction: | Trapezoid, 18 mm, plywood. |
painting: | Rugged durable finish. |
Dimensions: | 470(W)x443(D)x690(H)mm. |
Weight: | 30.5Kg. |
