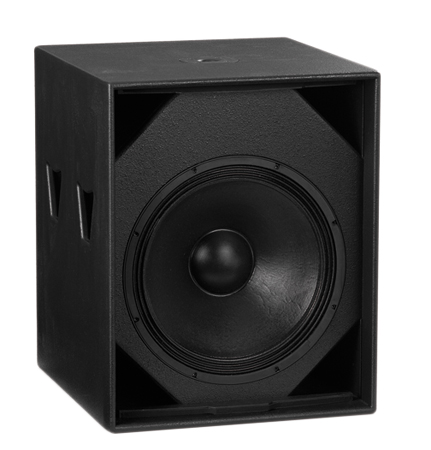

S18+
The compact Blackline S18+ sub bass system has been designed to be
used with F12+ and F15+ full-range systems to extend and increase the
total low frequency output power.
The S18+ provides good bass punch with extended sub bass output from a
new long excursion,18"460mm/4"100mm voice coil driver with a water resistant
cone and triple roll surround.
The S18+ is provided with a top hat fitting that can be used to pole mount
an F12 or F15 above the enclosure.
Features
1. Compact vented sub-bass
2. Direct radiating 18” (460mm) driver
3. High temperature 4” (100mm) voice coil
4. Large ports ensure low air noise
5. Top hat fitting for pole mounting F12+/F15+
Applications
1. Live club performance
2. Club installs
3. AV presentations
used with F12+ and F15+ full-range systems to extend and increase the
total low frequency output power.
The S18+ provides good bass punch with extended sub bass output from a
new long excursion,18"460mm/4"100mm voice coil driver with a water resistant
cone and triple roll surround.
The S18+ is provided with a top hat fitting that can be used to pole mount
an F12 or F15 above the enclosure.
Features
1. Compact vented sub-bass
2. Direct radiating 18” (460mm) driver
3. High temperature 4” (100mm) voice coil
4. Large ports ensure low air noise
5. Top hat fitting for pole mounting F12+/F15+
Applications
1. Live club performance
2. Club installs
3. AV presentations
- Specifications
- Accessories
- Configurations
Technical Specification - View
| System Type： | Compact, vented sub-bass system |
| Frequency Range： | 40Hz - 120Hz ±3db. |
| LF Driver： | 18" (460mm)/4" (100mm) voice coil LF driver |
| HF Driver： | / |
| Power： | 750W AES, 1500W peak |
| Nominal Impedance: | 8 ohms |
| Maximum SPL： | 130.5dB continuous, 136.5dB peak (half space) |
| Sensitivity： | 102dB (half space) |
| Horizontal： | / |
| Vertical： | / |
| Connection： | 2xNeutrik NL4. |
| Input： | Input: 1+,1-, Link:2+,2-. |
| Enclosure Construction： | Trapezoid, 18 mm, plywood. |
| painting： | Rugged durable finish. |
| Dimensions： | 560(W)x595(D)x690(H)mm. |
| Weight： | 45Kg. |
