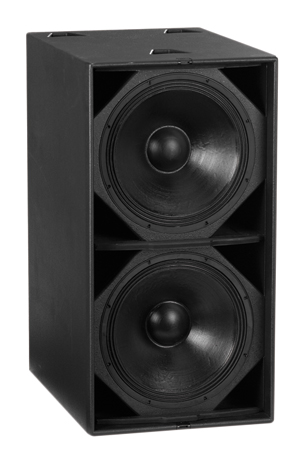

S218+
The powerful S218+ sub bass system has been designed to be
used with large scale F12+ and F15+ systems to extend and increase
the total low frequency output power.
It can also be used as the low frequency section of a bi amped or
tri amped ARCS system.The S218+ provides good bass punch with extended
sub bass output from two new, long excursion, 18" 460mm/4"100mm
voice coil drivers with water resistant cones and triple roll
surrounds.
used with large scale F12+ and F15+ systems to extend and increase
the total low frequency output power.
It can also be used as the low frequency section of a bi amped or
tri amped ARCS system.The S218+ provides good bass punch with extended
sub bass output from two new, long excursion, 18" 460mm/4"100mm
voice coil drivers with water resistant cones and triple roll
surrounds.
- Specifications
- Accessories
- Configurations
Technical Specification - View
| System Type： | Dual-driver, vented sub-bass system |
| Frequency Range： | 35Hz - 150Hz ±3db. |
| LF Driver： | 2 x 18" (460mm)/4"(100mm) voice coil LF drivers |
| HF Driver： | / |
| Power： | 1500W AES, 3000W peak |
| Nominal Impedance: | 4 ohms |
| Maximum SPL： | 136.5dB continuous, 142.5dB peak (half space) |
| Sensitivity： | 105dB (half space) |
| Horizontal： | / |
| Vertical： | / |
| Connection： | 2xNeutrik NL4. |
| Input： | Input: 1+,1-, Link:2+,2-. |
| Enclosure Construction： | Trapezoid, 18 mm+25 mm, plywood. |
| painting： | Rugged durable finish. |
| Dimensions： | 560(W)x780(D)x1066(H)mm. |
| Weight： | 87Kg. |
