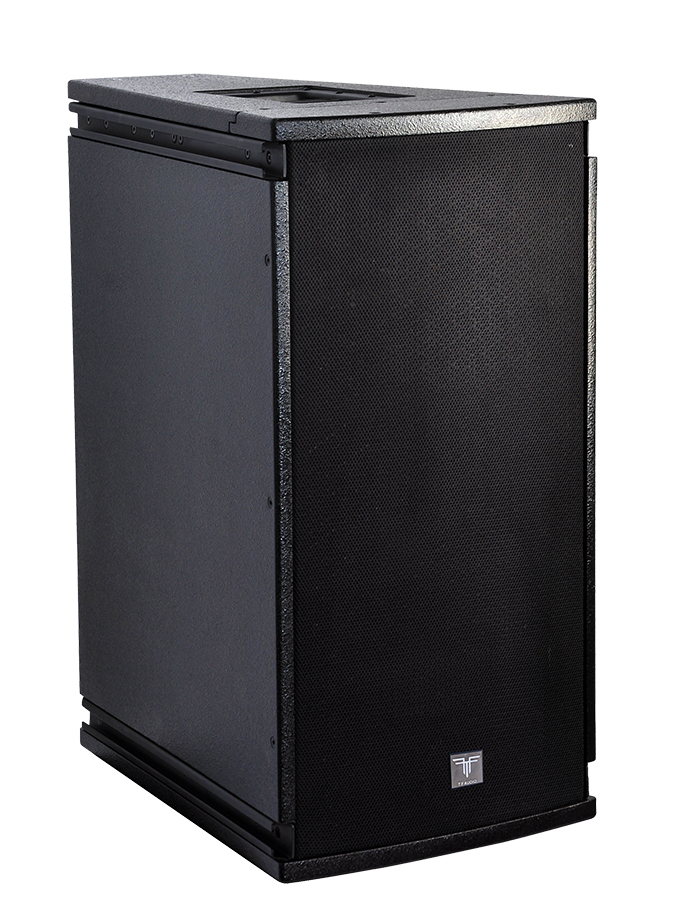

ARCS Ⅱ
The ARCS II constant curvature line source is optimized for medium .
throw applications. Boasting grade drivers in a 2 way active enclosure,
ARCS II delivers very high SPL levels, native low frequency performance
and constant tonal balance over distance. ARCS II is simple to use,with
its constant curvature design and is particularly recommended for indoor
L/C/R applications, medium sized outdoor festivals or as a fill complement
to large K systems.
In the enclosure coupling plane, the razorsharp SPL off axis rejection is
used to avoid reflecting surfaces. In the perpendicular plane, the smooth
SPL roll off and asymmetric directivity of ARCS II can be used to maximize
stereo imaging and perfectly adjust to the audience geometry.
throw applications. Boasting grade drivers in a 2 way active enclosure,
ARCS II delivers very high SPL levels, native low frequency performance
and constant tonal balance over distance. ARCS II is simple to use,with
its constant curvature design and is particularly recommended for indoor
L/C/R applications, medium sized outdoor festivals or as a fill complement
to large K systems.
In the enclosure coupling plane, the razorsharp SPL off axis rejection is
used to avoid reflecting surfaces. In the perpendicular plane, the smooth
SPL roll off and asymmetric directivity of ARCS II can be used to maximize
stereo imaging and perfectly adjust to the audience geometry.
- Specifications
- Accessories
- Configurations
Technical Specification - View
System Type: | 15″, 2-way, |
Frequency Range: | 52Hz - 20KHz ±3db. |
LF Driver: | 1x15" 75mmVC Nd. |
HF Driver: | 1x3" 75mmVC Compression driver Nd. |
Power: | HF:100W (HPF above 1000Hz) LF:800W((HPF above 35Hz) |
Nominal Impedance: | HF:8 ohms LF:8 ohms |
Maximum SPL: | 134db Continuous. |
Sensitivity: | HF:107db/m/W.LF:101db/m/W. |
Horizontal: | 22.5° |
Vertical: | 60° |
Connection: | 2xNeutrik NL4. |
Input: | Input: HF:2+,2-, LF:1+,1-. |
Enclosure Construction: | Trapezoid, 18 mm, plywood. |
painting: | Rugged durable finish. |
Dimensions: | 440/190(W/w)x650(D)x820(H)mm. |
Weight: | 50Kg. |
