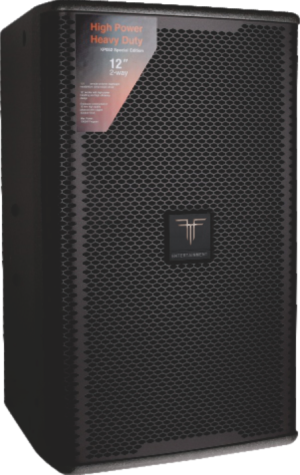

KP052
- Specifications
- Accessories
- Configurations
Technical Specification - View
| System Type： | 12″, 2-way, bass-reflex |
| Frequency Range： | 45Hz - 20KHz ±3db. |
| LF Driver： | 1x12" 75mmVC Fe. |
| HF Driver： | 1x1.5" 38mmVC Compression driver. |
| Power： | 500W (AES) |
| Nominal Impedance: | 8 ohms |
| Maximum SPL： | 125db Continuous. |
| Sensitivity： | 98db/m/W. |
| Horizontal： | 80° |
| Vertical： | 70° |
| Connection： | 2xNeutrik NL4. |
| Input： | Input: 1+,1-, Link:2+,2-. |
| Enclosure Construction： | Trapezoid, 15 mm, plywood. |
| painting： | Rugged durable finish. |
| Dimensions： | 360(W)x410(D)x600(H)mm. |
| Weight： | 22Kg |
