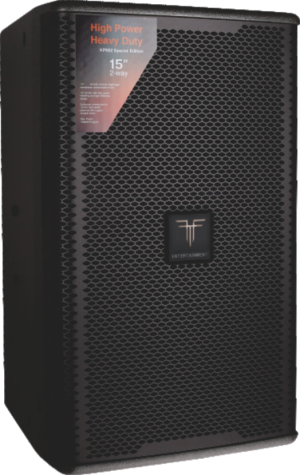

KP055
- Specifications
- Accessories
- Configurations
Technical Specification - View
| System Type： | 15″, 2-way, bass-reflex |
| Frequency Range： | 43Hz - 20KHz ±3db. |
| LF Driver： | 1x15" 75mmVC Fe. |
| HF Driver： | 1x1.4" 38mmVC Compression driver. |
| Power： | 600W (AES) |
| Nominal Impedance: | 8 ohms |
| Maximum SPL： | 127db Continuous. |
| Sensitivity： | 99db/m/W. |
| Horizontal： | 70° |
| Vertical： | 60° |
| Connection： | 2xNeutrik NL4. |
| Input： | Input: 1+,1-, Link:2+,2-. |
| Enclosure Construction： | Trapezoid, 15 mm, plywood. |
| painting： | Rugged durable finish. |
| Dimensions： | 410(W)x460(D)x680(H)mm. |
| Weight： | 26Kg |
